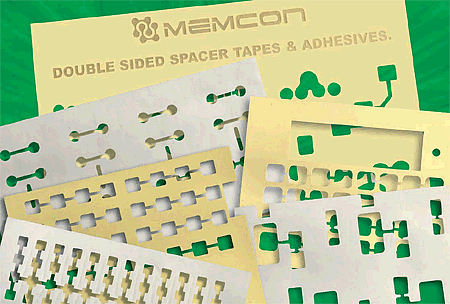

Spacer / Adhesive Tapes

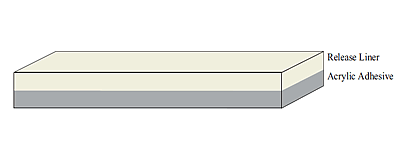

Transfer Tape
MTT Series
Part Number
Thickness (mm)
Part Number
Thickness (mm)
MTT764
0.050
MTT864
0.130

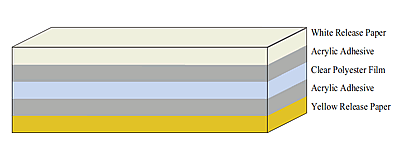

Double Sided Spacer Tape
MSD Series
Part Number
Thickness (mm)
Part Number
Thickness (mm)
MSD088-38A38
0.088
MSD125-50A50
0.125
MSD13850A50
0.138
MSD150-50A50
0.150
MSD175-50A50
0.175
MSD200-50A50
0.200
MSD225-50A50
0.225
MSD288-50A50
0.288
MSD350-50A50
0.350

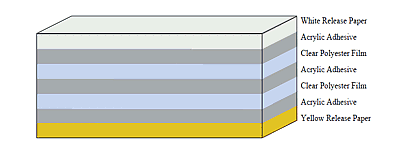

Pre-Laminated Spacer
MSDL400-50A50
0.400
MSDL450-50A50
0.450
MSDL576-50A50
0.576
MSDL700-50A50
0.700

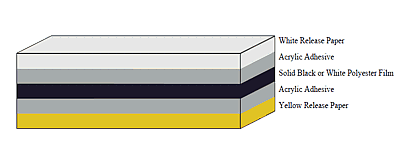

Double Sided Spacer Tape (Carrier: White / Black PET)
MSD Series
Part Number
Thickness (mm)
Part Number
Thickness (mm)
MSD150-50A50W
0.150 (White)
MSD225-50A50B
0.225 (Black)

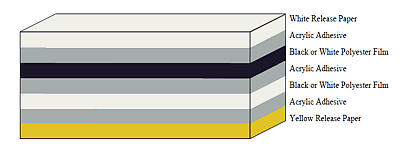

Pre-Laminated Spacer
MSDL300-50A50W
0.300 (White)
MSDL450-50A50B
0.450 (Black)
MSDL375-50A50W/B
0.375 (White + Black)
Black Colour
White Colour

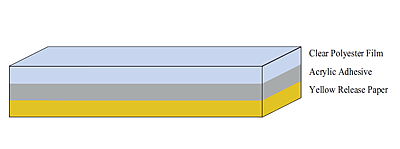

Single Sided Spacer Tape
MSS Series
Part Number
Thickness (mm)
Part Number
Thickness (mm)
MSS075-50A
0.075
MSS100-50A
0.100
MSS125-50A
0.125
MSS150-50A
0.150
MSS175-50A
0.175
MSS238-50A
0.238

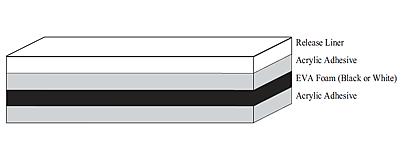

Double Sided EVA Foam Tape
MDEFT113 Series
Part Number
Thickness (mm)
Part Number
Thickness (mm)
MDEFT113B-38L4
1.13
MDEFT113W-38L4
1.13
Black Colour
White Colour

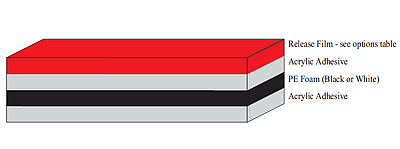

Double Sided PE Foam Tape
MDFT063 Series
Part Number
Thickness (mm)
Colour
Density (kg/cbm)
MDFT063(W)-125L(1)
0.63
Black
White
125
MDFT063(W)-200L(1)
0.63
Black
White
200
MDFT093(W)-100L(1)
0.93
Black
White
100
MDFT113(W)-100L(1)
1.13
Black
White
100
MDFT163(W)-85L(1)
1.63
Black
White
85
MDFT213(W)-65L(1)
2.13
Black
White
65

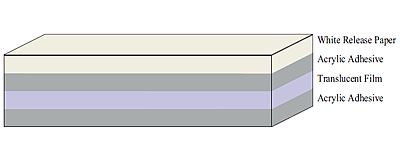

Double Sided Adhesive Tape (Carrier: Tissue)
MDST Series
Part Number
Thickness (mm)
Carrier Material
Colour
MDST120
0.120
Tissue
Translucent
MDST140
0.140
Tissue
Translucent
MDST160
0.16
Tissue
Translucent

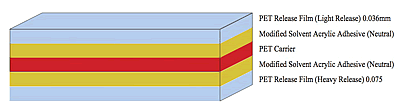

Optically Clear Adhesive
MOCUTNA Series
* Ideally for use in Touch Display and associated products
* It is suitable for adhesion to a range of surfaces including glass, SUS and PC where a high level of adhesion is required
* Two release liners for optimum adhesive smoothness and differential release to ease processing and ensure protection from contamination
Part Number
Thickness (mm)
Part Number
Thickness(mm)
MOCUTNA080
0.080
MOCUTNA150
0.150

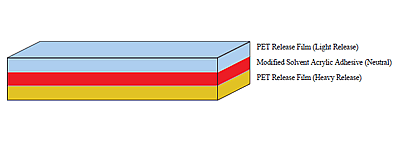

MOCAC Series
* Ideally for use in Touch Display and associated products
* Utilises a neutral adhesive allowing direct bonding to ITO glass for capacitive touch screen applications
Part Number
Thickness (mm)
Part Number
Thickness(mm)
MOCAC025
0.025
MOCAC050
0.05
MOCAC075
0.075
MOCAC100
0.100
MOCAC125
0.125
MOCAC175
0.175

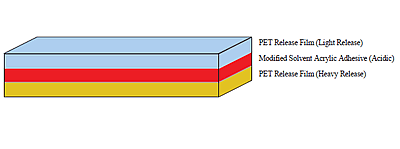

MOCAR MOCHAR MOCSAR Series
* Ideally for use in Touch Display and associated products
* Utilises an acidic adhesive ideal for resistive touch screen applications
Part Number
Thickness (mm)
Part Number
Thickness(mm)
MOCAR025
0.025
MOCAR050
0.05
MOCAR075
0.075
MOCAR100
0.100
MOCAR125
0.125
_
_
* MOCHAR series is with hard acrylic adhesive (harder than then MOCAR series) flows and fills surface irregularities and provides increase level of rigidity
MOCHAR025
0.025
MOCHAR050
0.05
MOCHAR075
0.075
MOCHAR100
0.100
MOCHAR125
0.125
_
_
* MOCSAR series is with soft acrylic adhesive (softer than then MOCAR series) flows an fills surface irregularities
